Gaussian Approximation of a Binomial Distribution

The code included in this example is compiled into a single file here.

This model is taken from an unreleased paper by the authors of the workflow [1]. The Binomial distribution is defined as:

\[ X \sim \text{B}(n,\,p),\]

where $n$ is the number of trials and $p$ is the probability of success. For sufficiently large $n$, this distribution has the following Gaussian approximation:

\[ y_i \sim p(y_i ; \theta) X \sim \mathcal{N}(np,\, \sqrt{np(1-p)}),\]

where $np$ is the mean number of successes and $\sqrt{np(1-p)}$ is the standard deviation of this mean. We take the model parameter vector as $\theta = (n,p)$.

The true parameter values are $\theta =(100, 0.2)$. The corresponding lower and upper parameter bounds are $a = (0.0001, 0.0001)$ and $b = (500,1.0)$. There is no observation time as such, but we take ten samples of the Gaussian approximation under the true parameterisation, $y^\textrm{o}_{1:I}=[21.9, 22.3, 12.8, 16.4, 16.4, 20.3, 16.2, 20.0, 19.7, 24.4]$.

Initial Setup

using Random, Distributions
using LikelihoodBasedProfileWiseAnalysis

Model and Likelihood Function Definition

distrib(θ) = Normal(θ[1] * θ[2], sqrt(θ[1] * θ[2] * (1 - θ[2])))

function loglhood(θ, data)
    return sum(logpdf.(distrib(θ), data.samples))
end

function predictfunction(θ, data, t=["n*p"]); [prod(θ)] end

Initial Data and Parameter Definition

# true parameters
θ_true = [200.0, 0.2]

# Named tuple of all data required within the log-likelihood function
data = (samples=[21.9, 22.3, 12.8, 16.4, 16.4, 20.3, 16.2, 20.0, 19.7, 24.4],)

# Bounds on model parameters
lb = [0.0001, 0.0001]
ub = [500.0, 1.0]

θnames = [:n, :p]
θG = [50, 0.3]
par_magnitudes = [100, 1]

LikelihoodModel Initialisation

model = initialise_LikelihoodModel(loglhood, data, θnames, θG, lb, ub, par_magnitudes)

Evaluating a Concave Boundary

This example is particularly interesting because it contains a very concave bivariate boundary - the IterativeBoundaryMethod thus becomes very appropriate to use. However, evaluting this many points may be prohibitive on higher dimensional models.

bivariate_confidenceprofiles!(model, 200,
    method=IterativeBoundaryMethod(20,20,20, 0.5, 0.1, use_ellipse=true))

Visualising the Progress of the IterativeBoundaryMethod

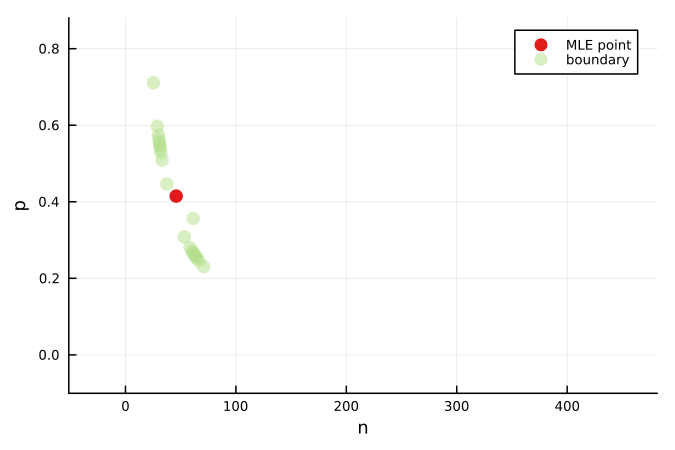

We can visualise the progress of the IterativeBoundaryMethod using plot_bivariate_profiles_iterativeboundary_gif.

using Plots; gr()
Plots.reset_defaults(); Plots.scalefontsizes(0.75)

format = (size=(450, 300), dpi=150, title="",
    legend_position=:topright, palette=:Paired)
plot_bivariate_profiles_iterativeboundary_gif(model, 0.2, 0.2;
    markeralpha=0.5, color=2, save_as_separate_plots=false, save_folder=joinpath("docs", "src", "assets", "figures", "binomial"), format...)

Coordinate Transformation

This is an example that particularly benefits from a coordinate transformation to improve the regularity of the log-likelihood. A natural log transformation is particularly appropriate.

Redefining Functions

Here we define the new log-likelihood and prediction functions which define the backwards mapping from our logged parameterisation to the original parameterisation. We also define a function which specifies the forward parameter transformation, from the original to the logged parameterisation.

function loglhood_Θ(Θ, data)
    return loglhood(exp.(Θ), data)
end

function predictfunctions_Θ(Θ, data, t=["n*p"]); [prod(exp.(Θ))] end

function forward_parameter_transformLog(θ)
    return log.(θ)
end

Transforming Parameter Definitions

To update the parameter bounds we can use transformbounds_NLopt, which solves an integer program to determine how the old bounds map to the new bounds given the specified transformation.

lb_Θ, ub_Θ = transformbounds_NLopt(forward_parameter_transformLog, lb, ub)

Θnames = [:ln_n, :ln_p]
ΘG = forward_parameter_transformLog(θG)
par_magnitudes = [2, 1]

LikelihoodModel Initialisation

model = initialise_LikelihoodModel(loglhood_Θ, data, Θnames, ΘG, lb_Θ, ub_Θ, par_magnitudes)

Re-evaluating the Bivariate Boundary

Re-evaluating the bivariate boundary of the log-likelihood function after the transformation reveals a much more convex shape.

bivariate_confidenceprofiles!(model, 40, method=RadialMLEMethod(0.15, 1.))

using Plots; gr()

plots = plot_bivariate_profiles(model, 0.2, 0.2; include_internal_points=true, markeralpha=0.9, format...)
display(plots[1])
